Hardware Overview
ControlGo is a versatile, portable lighting controller that integrates several powerful features into a single, compact device. It combines a DMX controller, RDM manager, CRMX transmitter, and DMX recorder, making it ideal for various lighting control applications.
Connections
ControlGo provides various options for managing your lighting setup:
- Signal Outputs: Offers both wired DMX512 (XLR 5p OUT) and CRMX / W-DMX.
- Wireless Control: Utilizes the built-in LumenRadio TimoTwo module, compatible with both CRMX and W-DMX (G4S and G3) for DMX and RDM communication.
For more detailed information, refer to the Connections section.
Batteries & Power
ControlGo supports various power sources to ensure continuous operation:
- NP-F Batteries: Slots for NP-F series batteries (not included).
- V-Mount Batteries: Compatible with 14.4V V-Mount batteries via an optional adapter.
- Direct DC Input: Accepts 12-48V DC input via Weipu connectors, and 5-12V via USB-C PD3.0.
For more details, visit the Batteries & Power section.
Accessories
ControlGo comes with several accessories to enhance its functionality and usability:
| Accessories | |
|---|---|

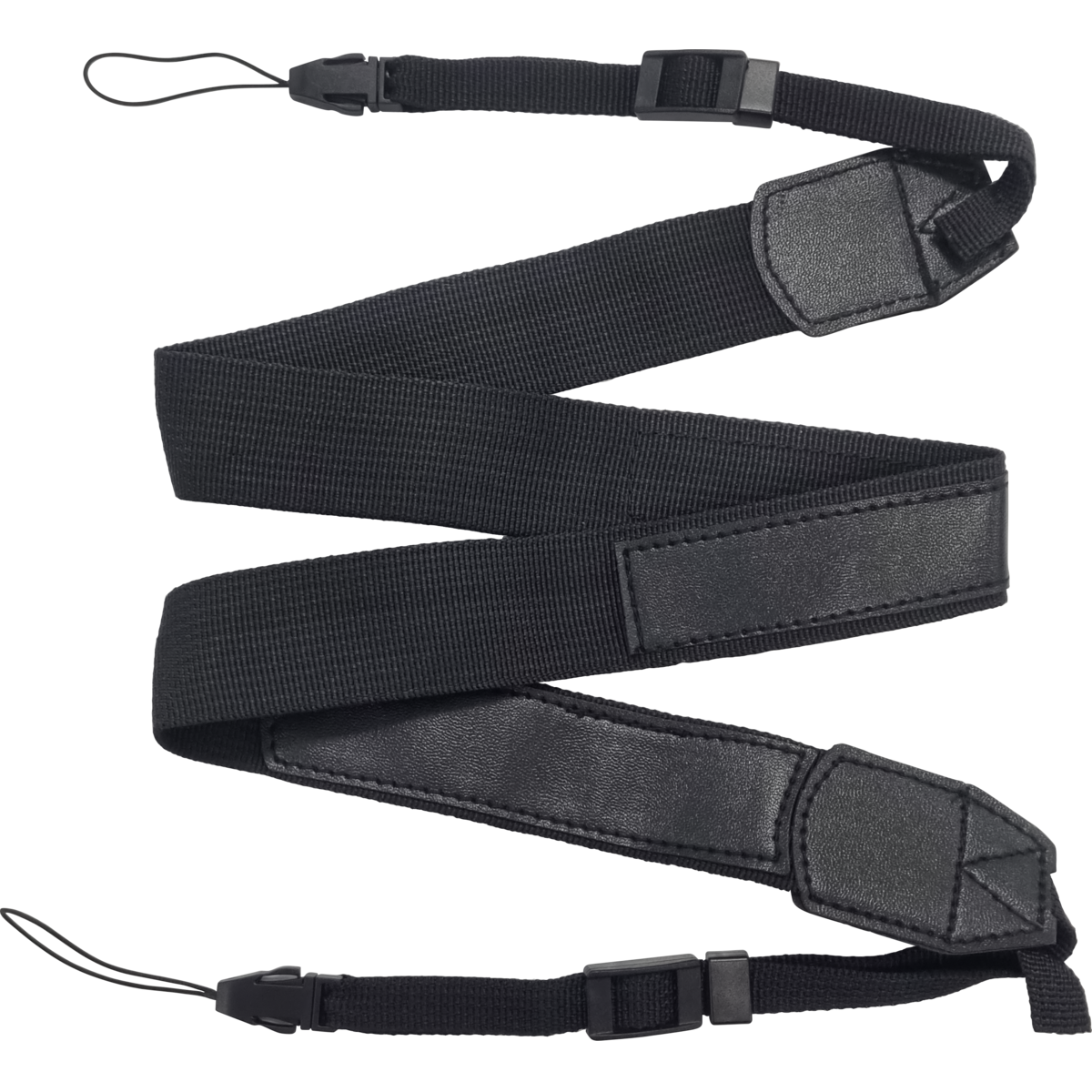

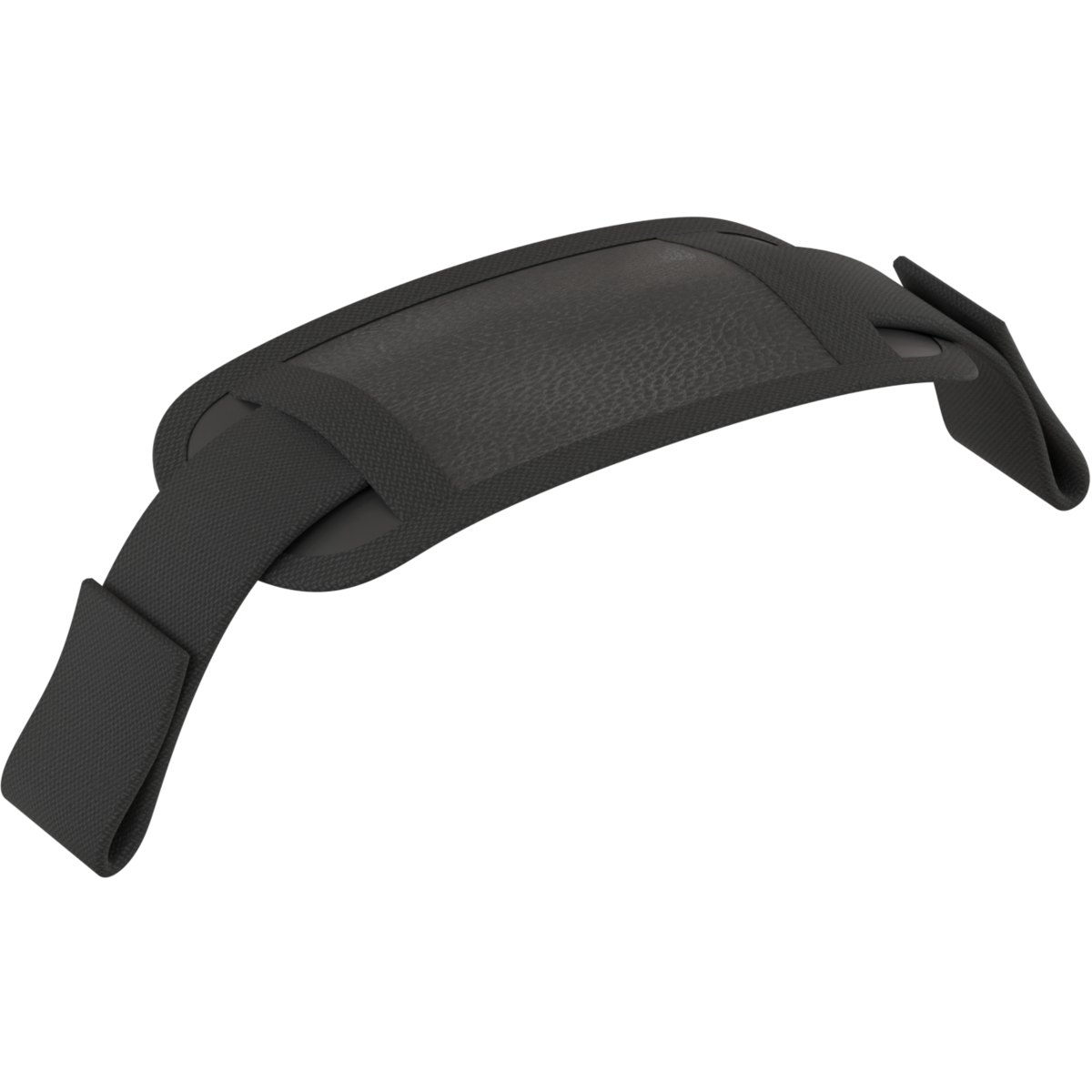

CTRGHANDLE - Soft Handles for easy handling - Included  | CTRGNL - Neck Lanyard with double balancing and adjustable side strips - Included  |

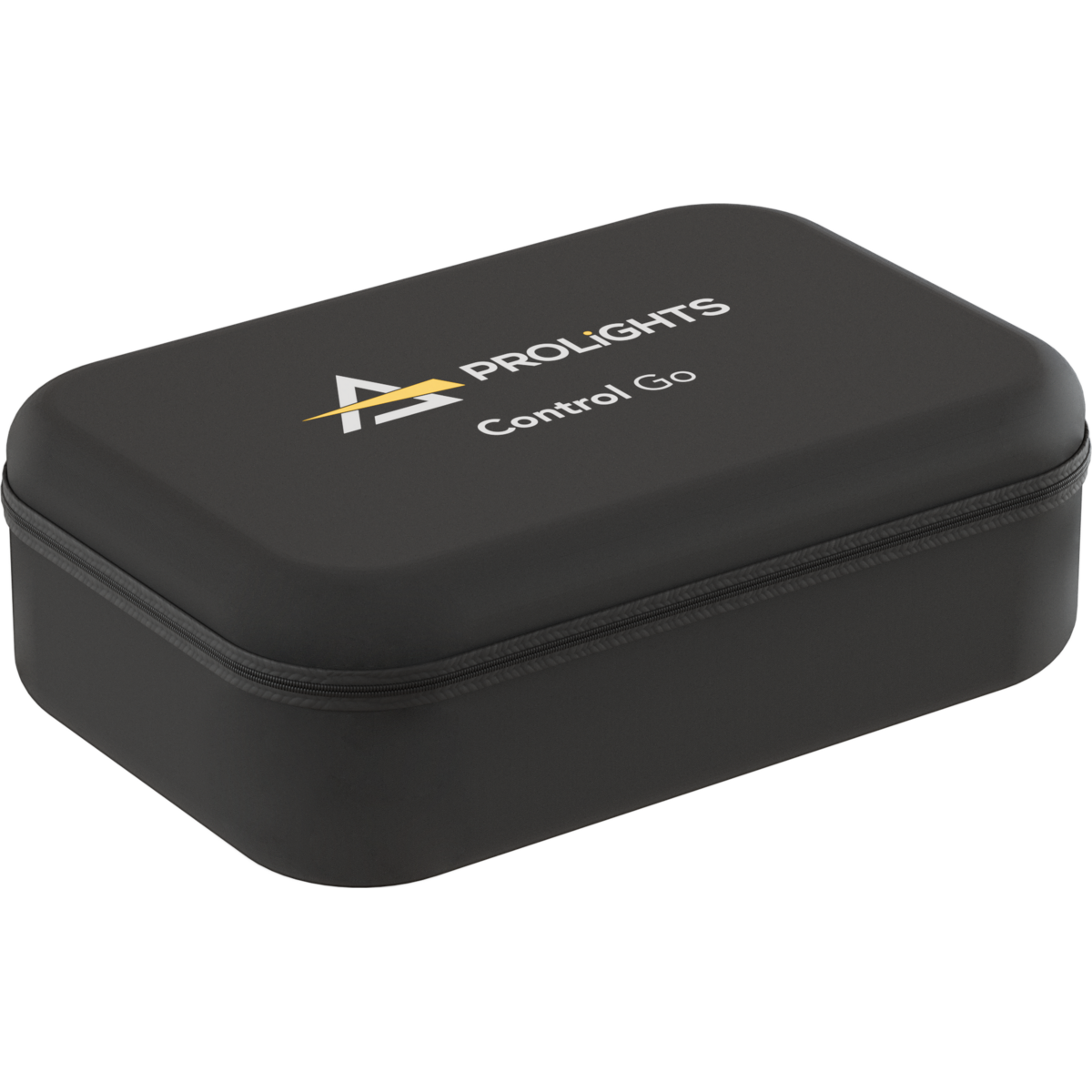

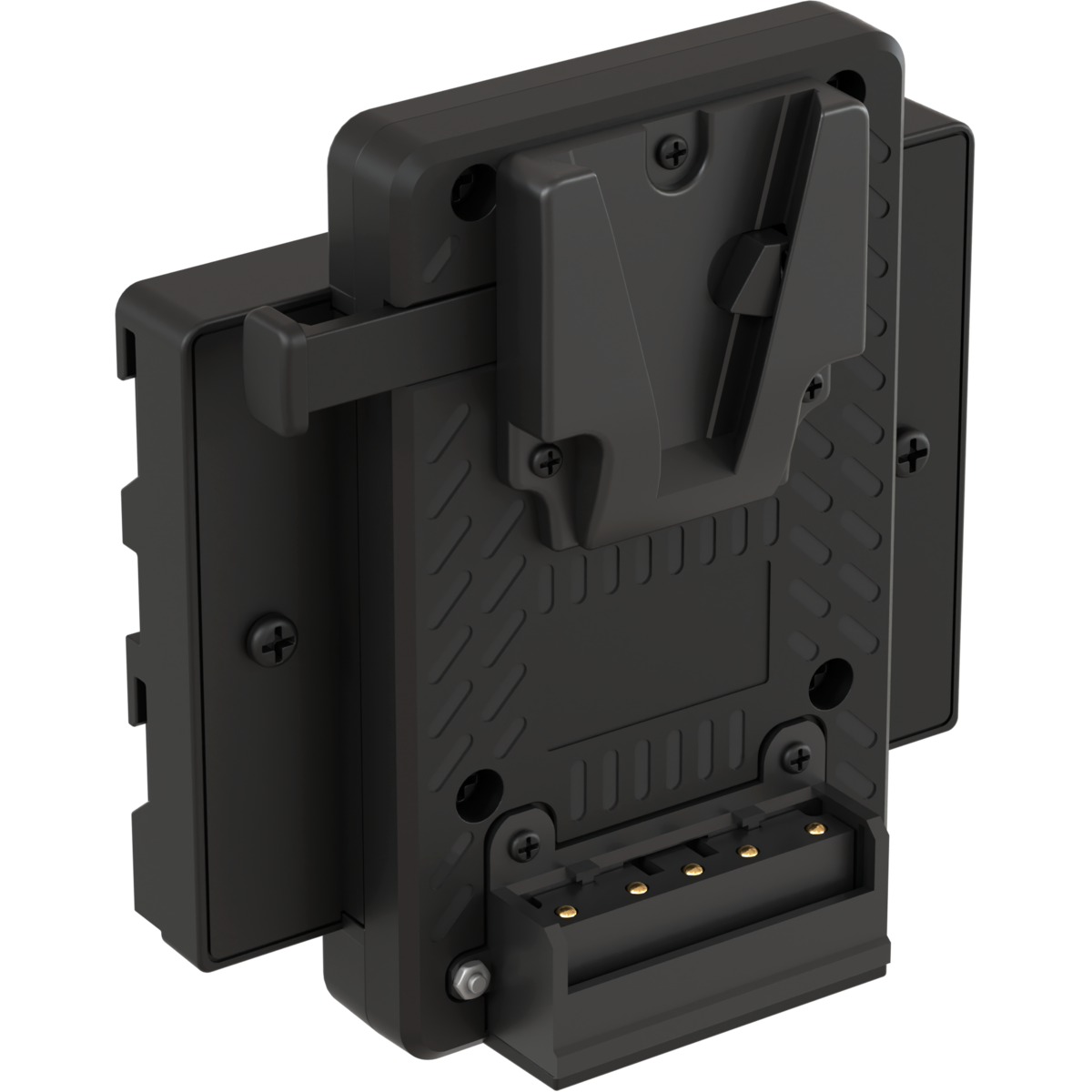

CTRGEVACASE - Protective Case for safe transport - Included  | CTRGVMADP - V-Mount adapter - Optional  |

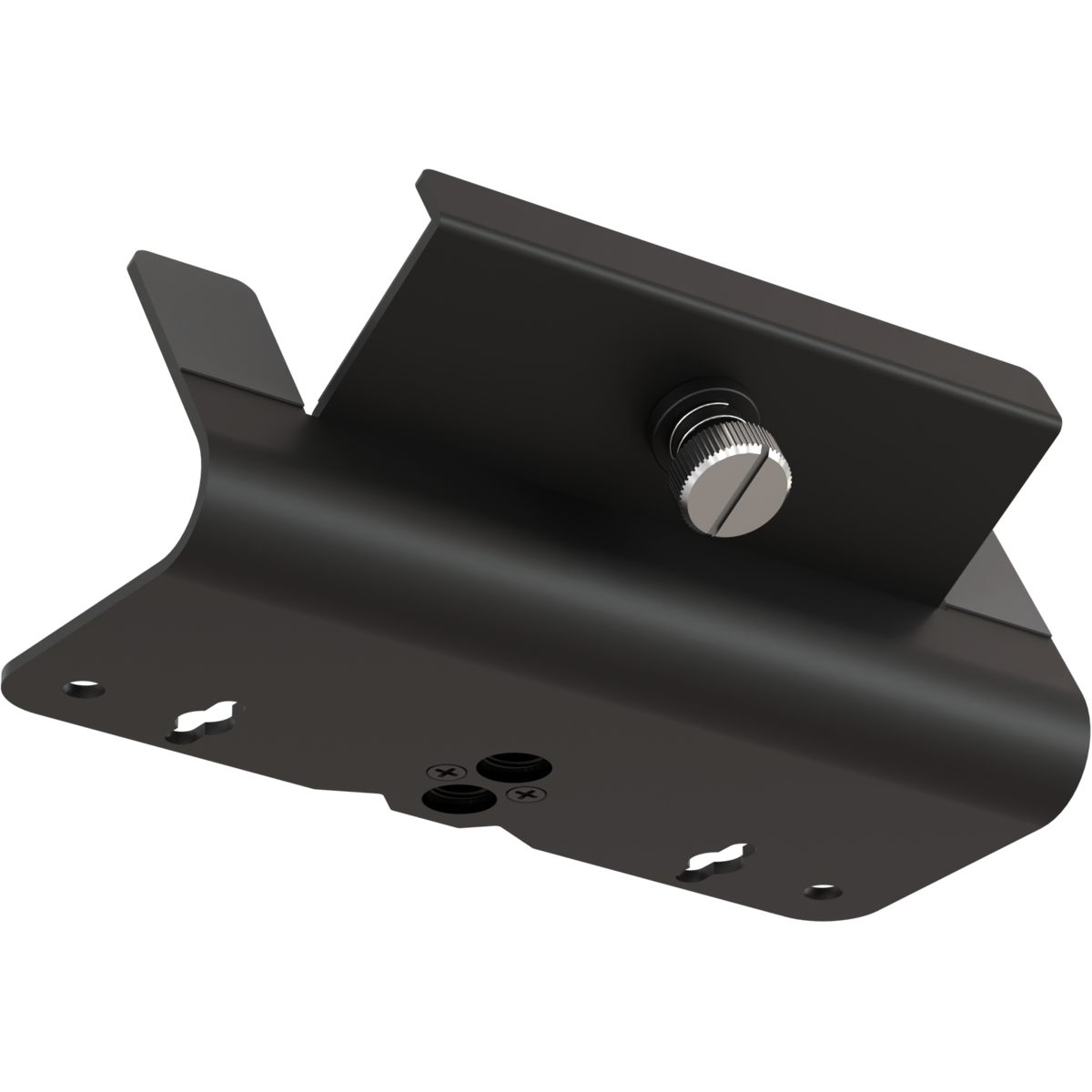

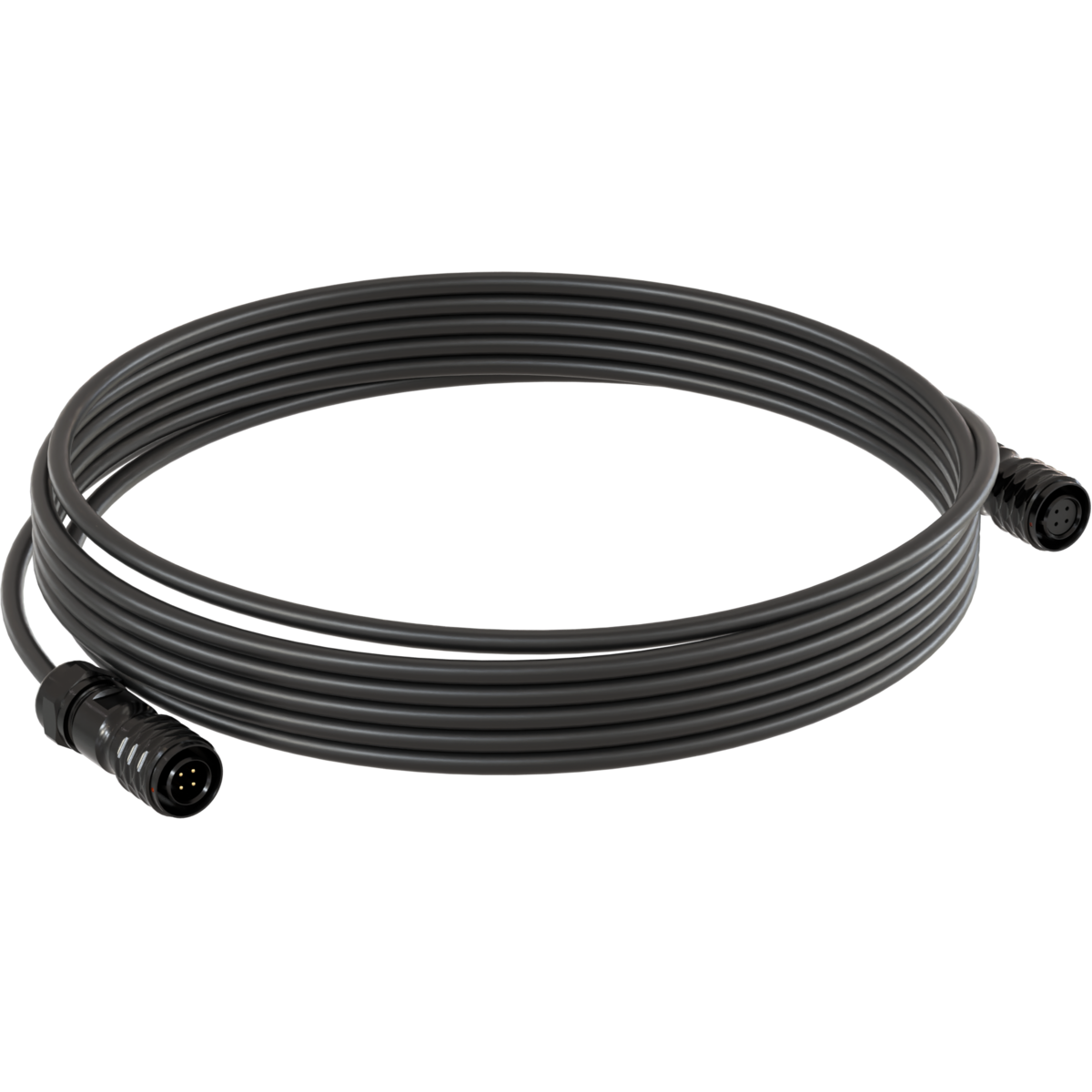

CTRGCABLE - 7.5 m cable WEIPU SA12 - Optional  | CTRGQMP - Quick mount plate - Optional  |

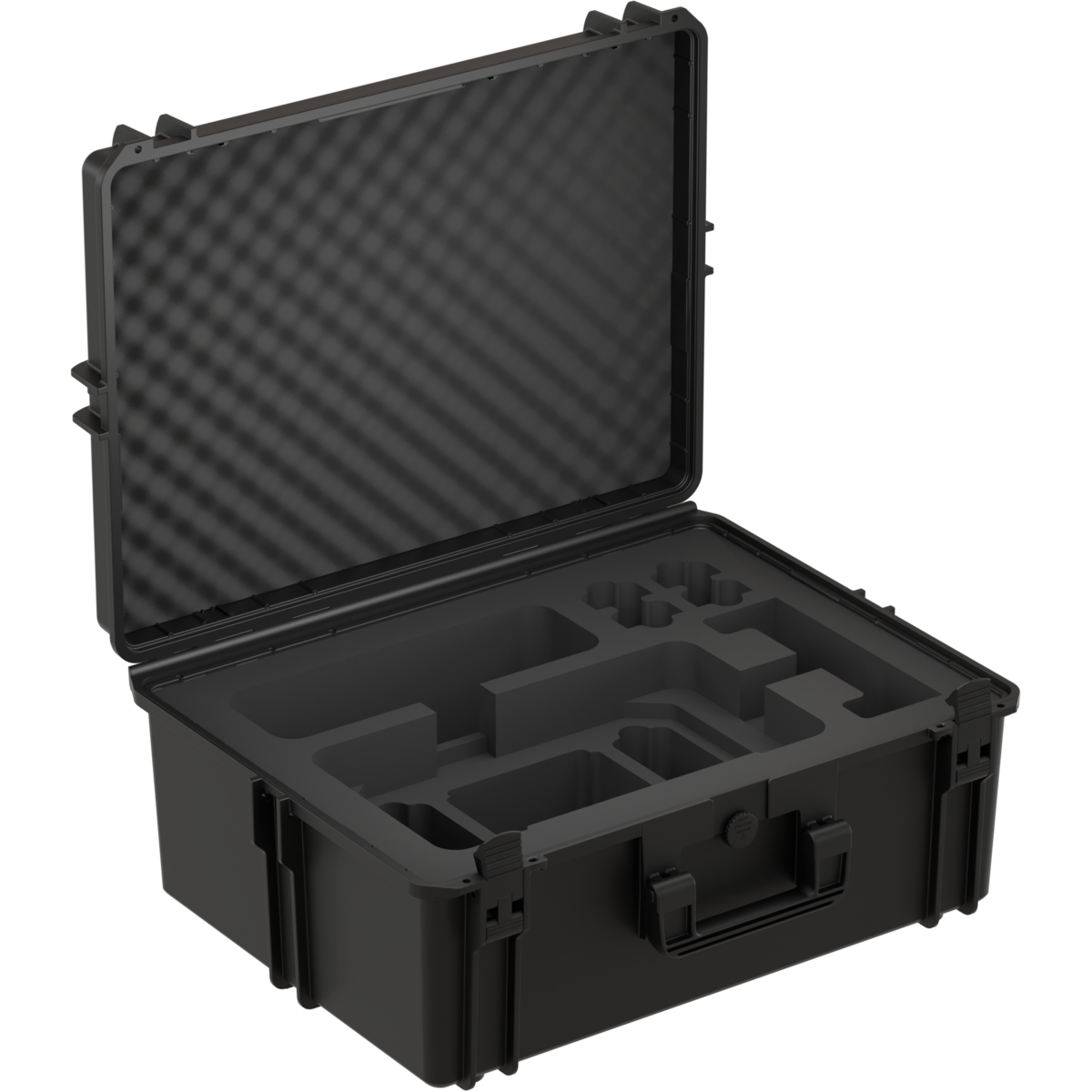

CTRGABSC - Empty ABS case for 1 Controlgo and batteries - Optional  |
